Durable and Water-Resistant Design: This charging station is designed with IP54 waterproof grade, ensuring it can withstand various weather conditions and harsh environments, providing reliable service for years to come.
Convenient Charging Methods: Equipped with swiping card, password, and QR code scanning capabilities, users can easily charge their electric vehicles with multiple convenient options.

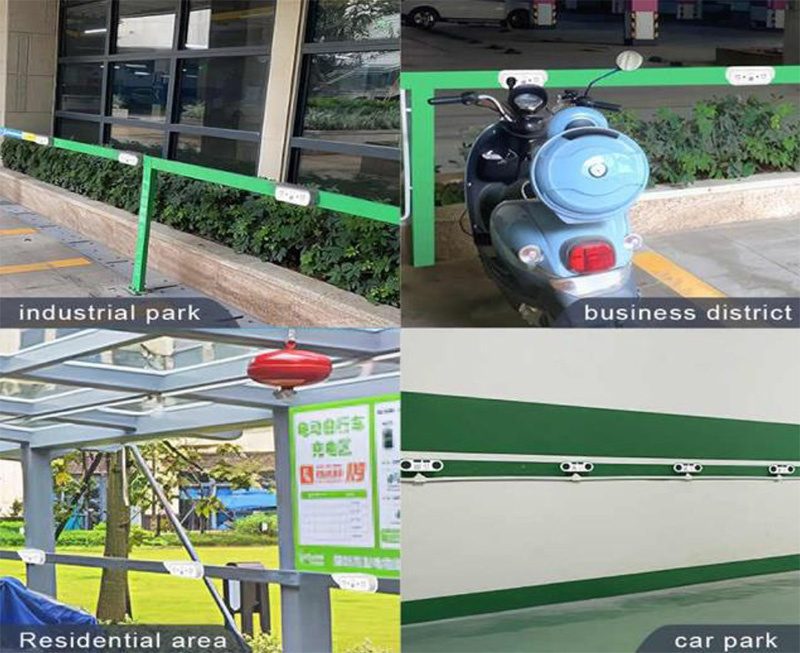

Wall-Mounted Installation: The charging station can be installed on the wall, saving space and creating a sleek, modern look for any garage or parking area.
High-Power Output: With an output power of 2KW, this charging station can quickly and efficiently charge electric vehicles, reducing downtime and increasing aa stop oil me productivity.
Compliant with International Standards: Meets CE and ROHS certification requirements, ensuring the product is safe and compliant with international regulations for use in various countries.
Wide Range of Models Intelligent Management Automatic Power Recognition Safe Charging
Big data intelligently determines whether the battery is full or not, automatically stops when full, reduces the probability of overcharging, and can be set in the background to float charging time
Overload/no load protection, short circuit protection, relay adhesion detection, waterproof, dust proof, lightning and rainproof, equipment self-test, leakage protection
Can be inserted into the car with the car charging adapter, and automatically identify the charging power, in order to correspond to the charging standard according to the power, accurate charging
When the system detects no load/overload, it will intelligently determine the power failure to protect the safety of the vehicle and the charging station
Protection class IP54, rainproof and dustproof to meet outdoor use
Measurement accuracy 亞, consistent with the meter; during the charging process, if the charging power is detected to be suddenly enlarged, it will automatically cut off the power and notify the user
| Name | Smart Plug Charger | Number of Charging lines | 2-way |
|---|---|---|---|
| Model | AarY2 | Single output Power | 3500W |
| Input Voltage | 220V±10% 50Hz± 10% | Communication Interface | 4G(option) |
| Protection Class | IP54 | Standby Power Consumption | 62W |
| Consumption Methods | Swipe Card, Sweep Code | billing Model | Supports automatic differentiation of charger power, |
| Shell Material | Flame retardant ABS Material | Environmental Temperature | -20°C-50°C |
| Dimensions | 240*83*114mm | ||

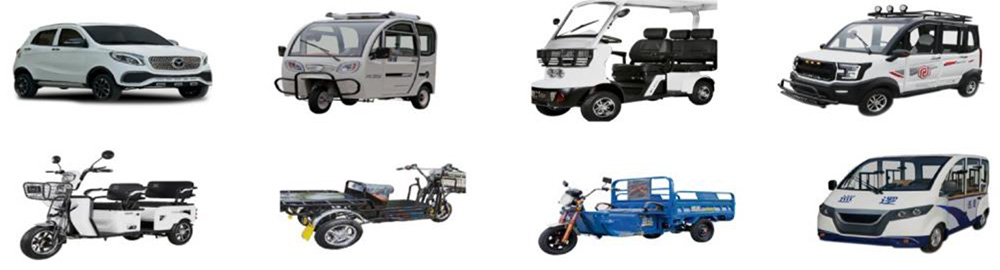

It is suitable for two/three-wheeled electric bicycles with power within 35OOW and common electric vehicle specifications such as 48V12AH, 48V14AH, 48V2OAH, 6OV2OAH, 6OV3OAH, 72V3OAH, 72V5OAH, 84V5OAH, etc., as well as part of four-wheeled electric vehicles

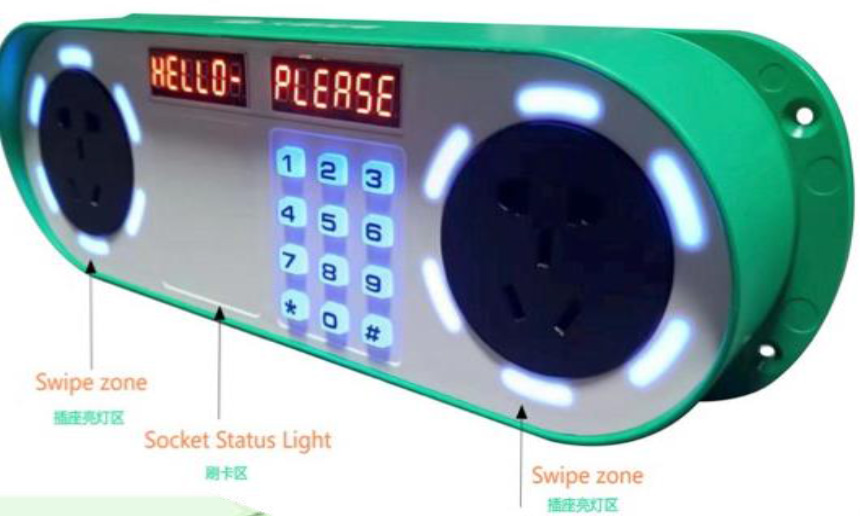

| Status Description | Light display |
|---|---|
| Idle state, not charged | Blue light, slow flash. |
| Charging | Blue light. Long on. |
| Full (stop charging) | Blue light. Long on. |
| Overloaded | Lights out |
